Downlights

Specifications

Colour / Finish  Dark bronze and black
Materials  Aluminium
Power  18W
Voltage  36V AC
Light Output  1620 lumens
Colour Temperature  3000K
Dimensions (mm)  DIA104 x H125 - 175; base H52; head H58
Adjustable  Arm 90˚, head 330˚
Weight  1100g
Dimmable  Optional
Beam Angle  80˚
CRI 97
IP Rating  IP20
Lifespan  40,000+ hours
Warranty  3 Year Residential

Specification Sheet

With an almost endless combination of modules, optics and fascias available in the Timbre ("tam-ba") collection, we have narrowed down the choices to our most popular downlights.

Timbre Classic is a deep-recessed COB LED downlight in warm white. This is a high-quality downlight with a CRI rating above 90, and is ideal for a range of applications throughout a home.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 13W / 18W
Input Voltage  AC200-240V, 50/60Hz
Light Output  548 lumens (6W) / 1222 lumens (13W) / 1524 lumens (18W)
Colour Temperature  3000K
Dimensions (mm)  DIA83 x H80 (6W) / H110 (13W) / H120 (18W)
Cutout (mm)  DIA75
Dimmable  Yes
Beam Angle  60˚
CRI  >90
IP Rating  IP20
Lamp  Bridgelux COB
Lifespan  40,000 hours
Warranty  3 Year Residential

Specification Sheet

With an almost endless combination of modules, optics and fascias available in the Timbre ("tam-ba") collection, we have narrowed down the choices to our most popular downlights.

Timbre Dim to Warm is a deep-recessed COB LED downlight that is 3000K when at full illumination, and turns a warmer 2000K when dimmed. This is a high-quality downlight that is perfect for living rooms and the bedroom, where winding down for relaxation and sleep is paramount.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 13W
Input Voltage  AC200-240V, 50/60Hz
Light Output  409 lumens (6W) / 897 lumens (13W)
Colour Temperature  2000K - 3000K
Dimensions (mm)  DIA83 x H80 (6W) / H110 (13W)
Cutout (mm)  DIA75
Dimmable  Yes
Beam Angle  60˚
CRI  >90
IP Rating  IP20
Lamp  Bridgelux COB
Lifespan  40,000 hours
Warranty  3 Year Residential

Specification Sheet

With an almost endless combination of modules, optics and fascias available in the Timbre ("tam-ba") collection, we have narrowed down the choices to our most popular downlights.

Timbre Sunlike is a deep-recessed COB LED downlight that is one of our highest quality products, providing a more healthy lighting environment. The LED uses technology to simulate the solar spectrum, and decrease excessive blue light wavelengths. The Sunlike downlight reproduces the spectrum closest to natural sunlight, offering benefits such as less glare, the ability to support our circadian rhythms during awake times and for sleep, and better colour rendering accuracy.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 13W
Input Voltage  AC200-240V, 50/60Hz
Light Output  400 lumens (6W) / 800 lumens (13W)
Colour Temperature  3000K
Dimensions (mm)  DIA83 x H80 (6W) / H110 (13W)
Cutout (mm)  DIA75
Dimmable  Yes
Beam Angle  60˚
CRI  >90
IP Rating  IP20
Lamp  Seoul COB
Lifespan  40,000 hours
Warranty  3 Year Residential

Specification Sheet

This series of mini downlights delivers powerful illumination in a tiny package. Suitable for use in wet areas such as the bathroom or kitchen, and featuring a fascia that snaps on easily with magnets, this low wattage, low glare downlight will fulfil multiple interior design needs.

Specifications

Colour / Finish  Black, white or silver
Materials  Aluminium
Input Voltage  30-40V
Driver Output Voltage  200-240V DC
Power  5W
Light Output  220-345 lumens
Colour Temperature  3000K or 4000K
CRI >90
Dimensions  DIA55mm x D40.6mm
Cutout  DIA45mm
CBUS Ready  No
Dimmable  Yes
Beam Angle  36˚
IP Rating  IP54*
IC Rating  IC-4
Globe  Bridgelux COB
Lifespan  40,000 hours
Warranty  3 Year Residential

*This product is suitable for installation in interior wet areas, such as bathrooms, and in protected outdoor areas that aren't fully exposed to the elements.

Understanding IP Ratings

Read more about Cambio Pinhole in the brochure

Specification Sheet

This series of mini downlights deliver powerful illumination in a tiny package. Suitable for use in wet areas such as the bathroom or kitchen, and featuring a fascia that snaps on easily with magnets, this low wattage, low glare downlight will fulfil multiple interior design needs.

Specifications

Colour / Finish  Black, white or silver
Materials  Aluminium
Input Voltage  200-240V
Driver Output Voltage  30-40V DC
Power  5W
Light Output  95-145 lumens
Colour Temperature  3000K or 4000K
CRI >90
Dimensions  DIA55mm x D40.6mm
Cutout  DIA45mm
CBUS Ready  No
Dimmable  Yes
IP Rating  IP54
IC Rating  IC-4
Globe  Bridgelux COB
Lifespan  40,000 hours
Warranty  3 Year Residential

*This product is suitable for installation in interior wet areas, such as bathrooms, and in protected outdoor areas that aren't fully exposed to the elements.

Understanding IP Ratings

Read more about Cambio Wall Washer in the brochure

Specification Sheet

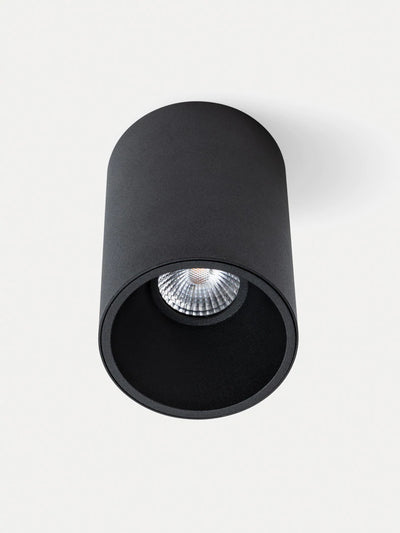

This cylindrical downlight has a myriad of applications due to its ability hang from the ceiling and face any direction with its articulating arm, or retract completely into its base and point directly downwards.

Specifications

Colour / Finish  White or black
Materials  Aluminium
Voltage  100-240V
Power  7W
Light Output  550 lumens
Colour Temperature  3000K or 4000K
CRI >90
Dimensions  DIA40mm x L90mm (module), DIA60mm x L90mm (housing)
Cutout  DIA55mm
Dimmable  Yes
Beam Angle  60˚
IP Rating  IP20
Lifespan  40,000 hours
Warranty  3 Year Residential

Specification Sheet

This cylindrical downlight has a myriad of applications due to its ability hang from the ceiling and face any direction with its articulating arm, or retract completely into its base and point directly downwards.

Specifications

Colour / Finish  White or black
Materials  Aluminium
Voltage  100-240V
Power  13W
Light Output  1170 lumens
Colour Temperature  3000K or 4000K
CRI >90
Dimensions  DIA60mm x L100mm (module), DIA98mm x L123mm (housing)
Cutout  DIA90mm
Dimmable  Yes
Beam Angle  50˚
IP Rating  IP20
Lifespan  40,000 hours
Warranty  3 Year Residential

Specification Sheet

A contemporary recessed downlight with multiple lights in the same fitting for increased illumination.

Specifications

Colour / Finish  Matt white
Materials  Aluminium
Power  10W
Voltage  220-240V AC
Light Output  800 lumens
Colour Temperature  3000K
Dimensions  W148mm x D45mm x H57mm
Cutout  W140mm x D37mm
Beam Angle  34°
CRI  >90
IP Rating  IP20
Lifespan  40,000 hours
Warranty  3 Year Residential

Specification Sheet

The 9W Designer recessed LED downlight is a high quality fixture with a clean, modern finish. This product is ideal for use in both residential and light-commercial new construction and retrofit applications.

Specifications

Category  Downlight
Colour / Finish  White or black
Materials  Polycarbonate and aluminium
Power Rating  9W
Voltage  220-240V AC
Lumens   750 - 910 lumens
Colour Temperature  3000K / 4000K / 5000K
Dimensions  DIA100mm x H60mm
Cutout  88-90mm
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  60°
CRI  >80
IP Rating  IP54*
IC Rating  IC-4 (with cover)
Lifespan  40,000+ Hours
Warranty  3 Year Residential

*This product is suitable for installation in interior wet areas, such as bathrooms, and in protected outdoor areas that aren't fully exposed to the elements.

Understanding IP Ratings

Specification Sheet

The Accent 2 is a high quality tri-colour downlight with a new slimline design. All electronics are internal within the unit, and the result is a great value downlight.

Specifications

Colour / Finish  White, satin nickel or black
Materials  Polycarbonate and nylon
Voltage  220-240V AC
Power  8W
Light Output  650-750 lumens
Colour Temperature  3000K / 4000K / 5000K
CRI  >80
Dimensions  DIA110mm x H38mm
Cutout  88-95mm
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  120˚
IP Rating  IP54*
IC Rating  IC-4
Warranty  3 Year Residential

*This product is suitable for installation in interior wet areas, such as bathrooms, and in protected outdoor areas that aren't fully exposed to the elements.

Understanding IP Ratings

Specification Sheet

The Architect 2 is a high quality 13W flush downlight with a clean, modern finish.

Specifications

Colour / Finish  White / Satin nickel
Materials  Aluminium
Voltage  240V
Power  13W
Light Output   960 / 1040 lumens
Colour Temperature  3000K / 4000K
CRI  >80
Dimensions  DIA108mm x H32mm
Cutout  90mm
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  90˚
IP Rating  IP44*
IC Rating  IC-4
Warranty  3 Year Residential

*This product is suitable for installation in interior wet areas, such as bathrooms, and in protected outdoor areas that aren't exposed to the elements.

Understanding IP Ratings

Specification Sheet

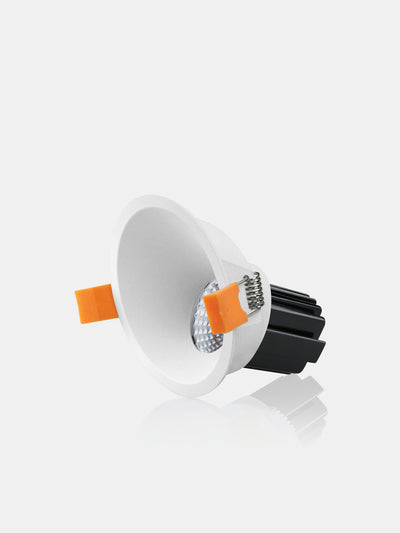

COB LED downlight with large deep-recessed fascia and separate driver.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 10W / 10W
Voltage  200-240V AC
Light Output  473-1616 lumens
Colour Temperature  3000K / 4000K
Dimensions (mm)  DIA100 x H78 (6W) / H97 (10W and 10W)
Cutout (mm)  DIA90-92
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  60˚
CRI >90
IP Rating  IP20
IC Rating  IC-4
Lamp  Bridgelux COB
Lifespan  54,000+ hours
Warranty  5 Year Residential

Specification Sheet

COB LED downlight with large deep-recessed gimbal fascia and separate driver.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 10W / 13W
Voltage  200-240V AC
Light Output  473-1616 lumens
Colour Temperature  3000K / 4000K
Dimensions (mm)  DIA100 x H78 (6W) / H97 (10W and 13W)
Cutout (mm)  DIA90-92
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  60˚
Tilt Angle  25˚
CRI >90
IP Rating  IP40
IC Rating  IC-4
Lamp  Bridgelux COB
Lifespan  54,000+ hours
Warranty  5 Year Residential

Specification Sheet

COB LED downlight with small deep-recessed fascia and separate driver.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 10W / 13W
Voltage  200-240V AC
Light Output  473-1616 lumens
Colour Temperature  3000K / 4000K
Dimensions (mm)  DIA85 x H78 (6W) / H97 (10W and 13W)
Cutout (mm)  DIA75-77
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  60˚
CRI >90
IP Rating  IP20
IC Rating  CA90
Lamp  Bridgelux COB
Lifespan  54,000+ hours
Warranty  5 Year Residential

Specification Sheet

IP54 COB LED downlight with small deep-recessed fascia and separate driver.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 10W / 13W
Voltage  200-240V AC
Light Output  473-1616 lumens
Colour Temperature  3000K / 4000K
Dimensions (mm)  DIA85 x H78 (6W) / H97 (10W and 13W)
Cutout (mm)  DIA75-77
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  60˚
CRI >90
IP Rating  IP54*
IC Rating  IC-4
Lamp  Bridgelux COB
Lifespan  54,000+ hours
Warranty  5 Year Residential

*This product is suitable for installation in interior wet areas, such as bathrooms, and in protected outdoor areas that aren't fully exposed to the elements.

Understanding IP Ratings

Specification Sheet

COB LED downlight with flush fascia and separate driver.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 10W / 13W
Voltage  200-240V AC
Light Output  473-1616 lumens
Colour Temperature  3000K / 4000K
Dimensions (mm)  DIA85 x H78 (6W) / H97 (10W and 13W)
Cutout (mm)  DIA75-77
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  60˚
CRI >90
IP Rating  IP44
IC Rating  IC-4
Lamp  Bridgelux COB
Lifespan  54,000+ hours
Warranty  5 Year Residential

Specification Sheet

COB LED downlight with flush frosted fascia and separate driver.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 10W / 13W
Voltage  200-240V AC
Light Output  473-1616 lumens
Colour Temperature  3000K / 4000K
Dimensions (mm)  DIA85 x H78 (6W) / H97 (10W and 13W)
Cutout (mm)  DIA75-77
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  60˚
CRI >90
IP Rating  IP44*
IC Rating  IC-4
Lamp  Bridgelux COB
Lifespan  54,000+ hours
Warranty  5 Year Residential

*This product is suitable for installation in interior wet areas, such as bathrooms, and in protected outdoor areas that aren't exposed to the elements.

Understanding IP Ratings

Specification Sheet

COB LED downlight with square gimbal fascia and separate driver.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 10W / 13W
Voltage  200-240V AC
Light Output  473-1616 lumens
Colour Temperature  3000K / 4000K
Dimensions (mm)  L103 x W103 x H65 (6W) / H84 (10W and 13W)
Cutout (mm)  DIA90-95
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  60˚
CRI >90
IP Rating  IP40
IC Rating  IC-4
Lamp  Bridgelux COB
Lifespan  54,000+ hours
Warranty  5 Year Residential

Specification Sheet

Double square COB LED downlight with gimbal fascia and separate driver.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 10W / 13W
Voltage  200-240V AC
Light Output  2 x 473 to 2 x 1616 lumens
Colour Temperature  3000K / 4000K
Dimensions (mm)  L200 x W110 x H73 (6W) / H88 (10W and 13W)
Cutout (mm)  L190 x W100
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  60˚
CRI >90
IP Rating  IP20
IC Rating  IC-4
Lamp  Bridgelux COB
Lifespan  54,000+ hours
Warranty  5 Year Residential

Specification Sheet

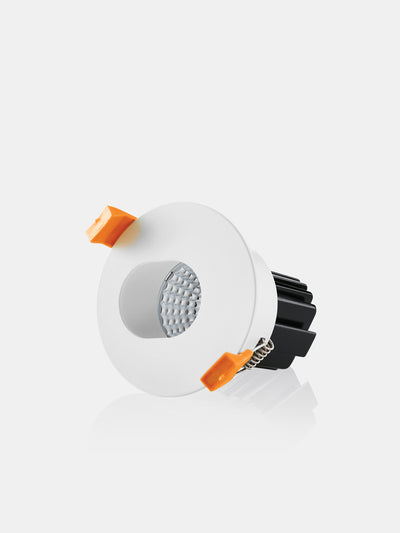

COB LED downlight with pinhole fascia and separate driver.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 10W / 13W
Voltage  200-240V AC
Light Output  473-1616 lumens
Colour Temperature  3000K / 4000K
Dimensions (mm)  DIA85 x H66 (6W) / H85 (10W and 13W)
Cutout (mm)  DIA70-75
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  NA
CRI >90
IP Rating  IP20
IC Rating  IC-4
Lamp  Bridgelux COB
Lifespan  54,000+ hours
Warranty  5 Year Residential

Specification Sheet

COB LED downlight with slot fascia and separate driver.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 10W / 13W
Voltage  200-240V AC
Light Output  473-1616 lumens
Colour Temperature  3000K / 4000K
Dimensions (mm)  DIA85 x H66 (6W) / H85 (10W and 13W)
Cutout (mm)  DIA70-75
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  60˚
CRI >90
IP Rating  IP20
IC Rating  IC-4
Lamp  Bridgelux COB
Lifespan  54,000+ hours
Warranty  5 Year Residential

Specification Sheet

COB LED downlight with wall washer fascia and separate driver.

Specifications

Colour / Finish  White / Black
Materials  Aluminium
Power  6W / 10W / 13W
Voltage  200-240V AC
Light Output  473-1616 lumens
Colour Temperature  3000K / 4000K
Dimensions (mm)  DIA98 x H78 (6W) / H94 (10W and 13W)
Cutout (mm)  DIA88-90
CBUS Ready  Yes
Dimmable  Yes
Beam Angle  60˚
CRI >90
IP Rating  IP20
IC Rating  IC-4
Lamp  Bridgelux COB
Lifespan  54,000+ hours
Warranty  5 Year Residential

Specification Sheet

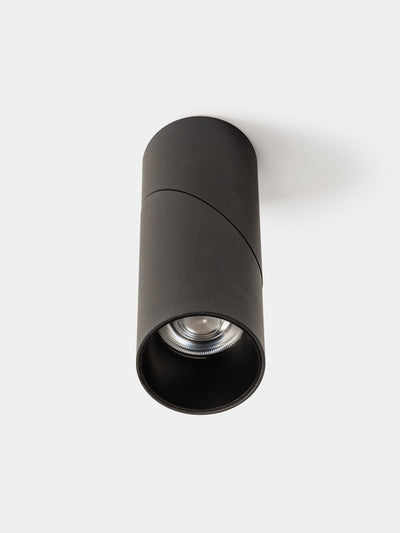

A hybrid of elegance and flexibility. The Mavi is a surface mounted downlight with an upper and lower body that can be moved and angled in a very dynamic and fluid way. The Mavi can rotate 360 degrees for multiple installation requirements.

Specifications

Colour / Finish  Black or white
Materials  Aluminium
Voltage  240V
Power  9W
Light Output  643 lumens
Colour Temperature  3000K / 4000K
CRI  >90
Dimensions  DIA63mm x H181mm
Cutout  NA
CBUS Ready  Yes
Dimmable  No
Beam Angle  38˚
IP Rating  IP20
Warranty  3 Year Residential

Specification Sheet

11W surface mounted LED downlight with integrated driver.

Specifications

Colour / Finish  Matt white or matt black
Materials  Aluminium alloy
Voltage  220-240V AC
Power  11W
Colour Temperature  3000K or 4000K
CRI  >80
Dimensions  90mm x 140mm
Dimmable  Yes
Beam Angle  36˚
IP Rating  IP20
Warranty  3 Year Residential

Specification Sheet
